Lab Scale Specification
| Auto Off Selective |
| Low Battery Indicator |
| Four Adjustable Feet with bubble level |
| Windshield |
| Large LED Display |
| Large round weighing plate |
| Calibration Weight Included |
| Max Measure weight 200g/ 300g/ |
| 500g/600g/1000g/2000g/3000g |
| Accuracy 0.01g |
| Pan Size:ø130mm |
| 220V or 110V power supply |
| Over Load Protechtion |
| Standard |
| Approvals |
20 Ton Specification
| Brand | Padma |

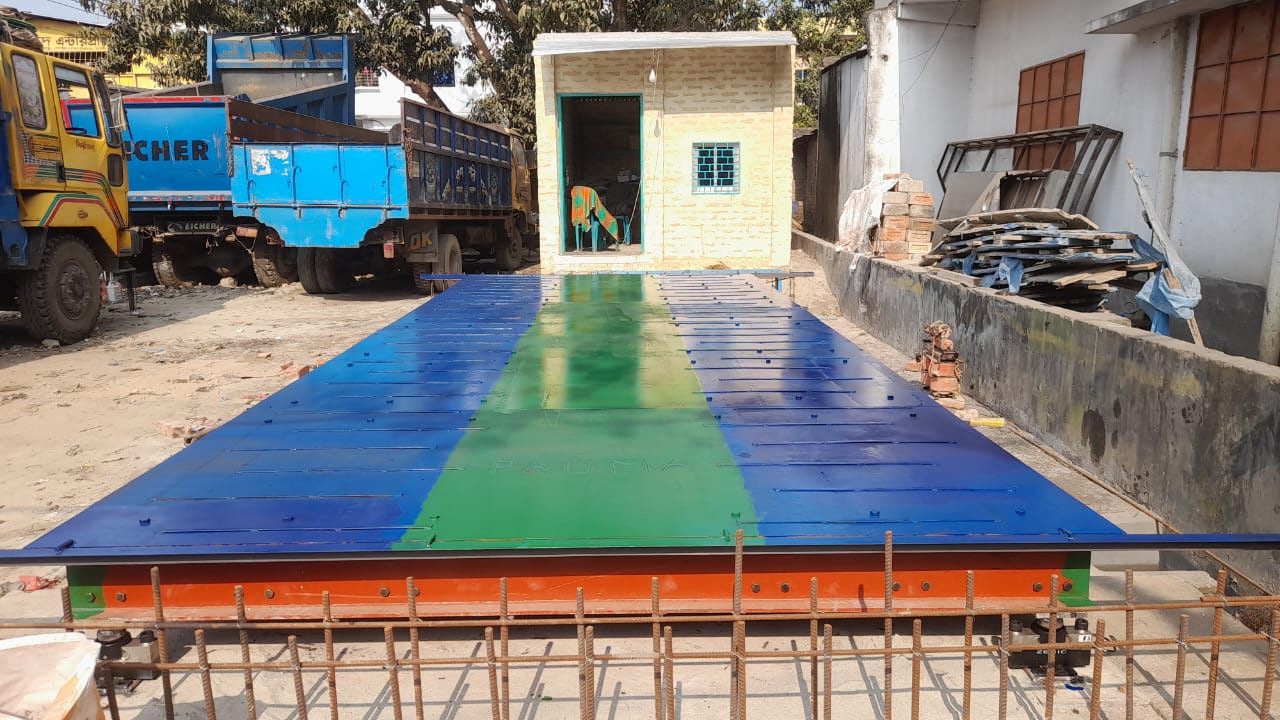

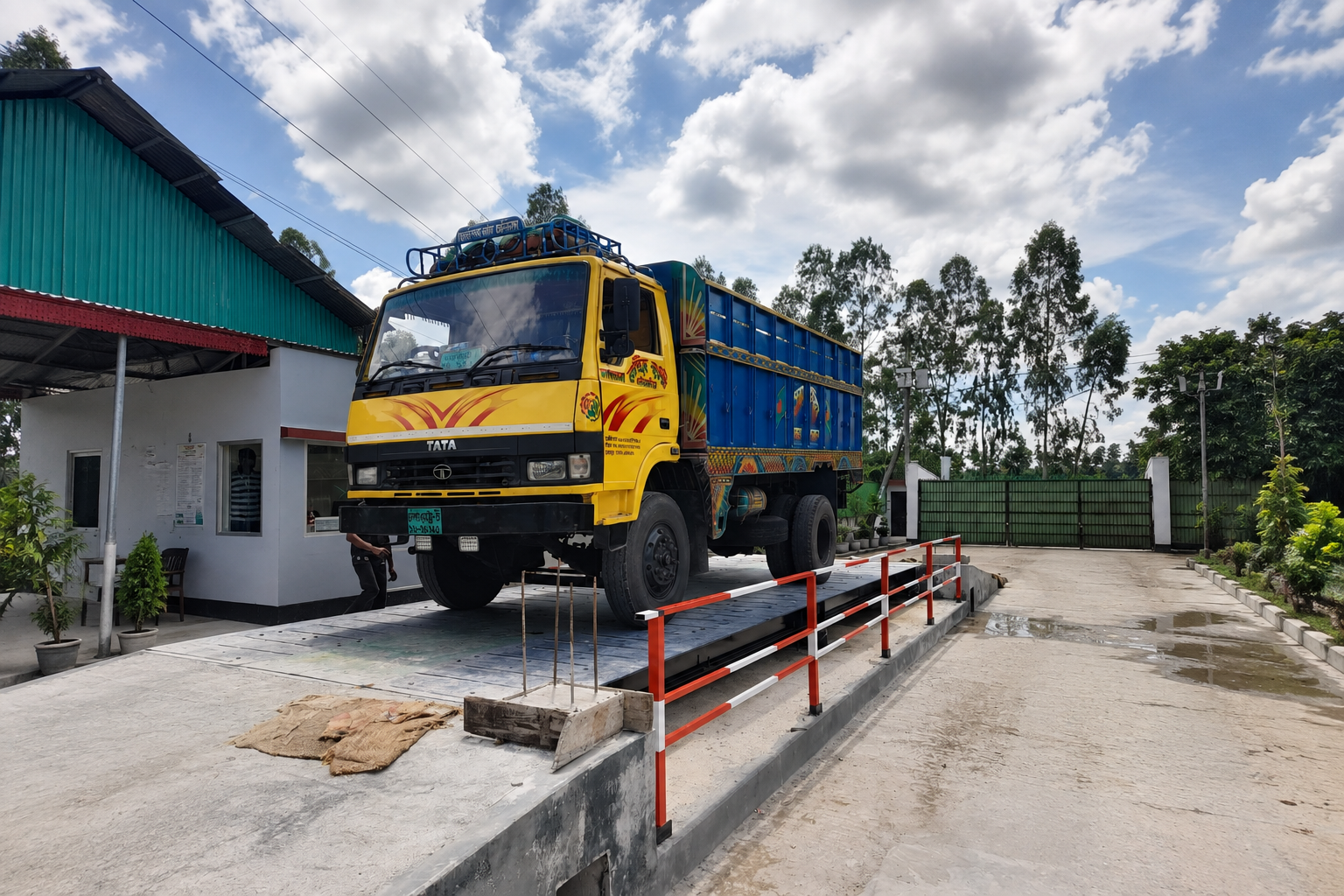

| Design | Pit / Pitless Type Road Weigh Bridge |
| Model | Padma 001 |
| Capacity | 20 Ton |
| Accuracy/Division | 2 Kg |
| Lengths | 16 Feet |
| Width | 8 Feet |
| Platform Material | MS (Mild Steel) |

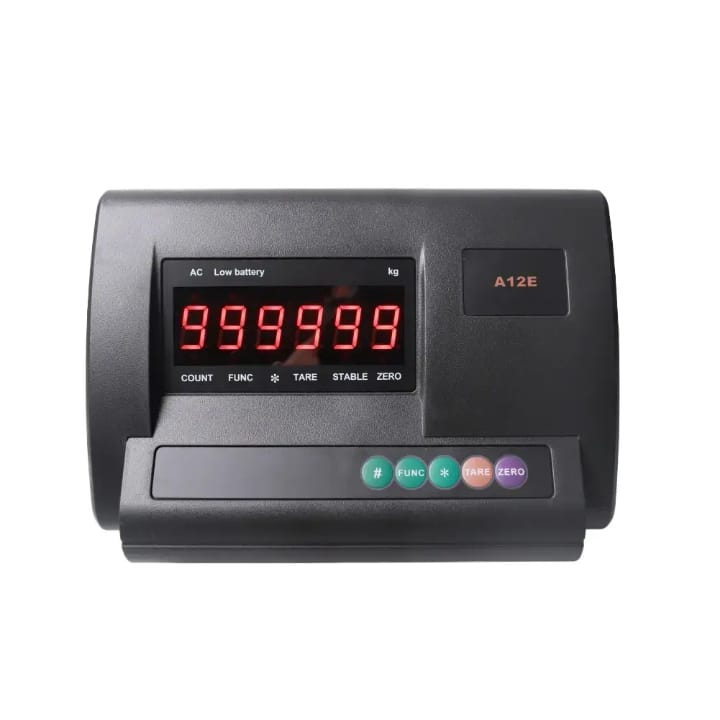

| Weighing Indicator | XK3190-DS1/DS3/DS8 |

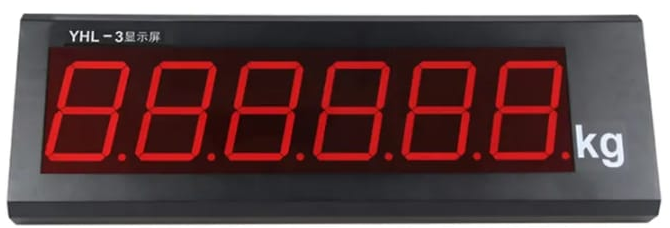

| Large Display | 6 Digit Bright Red Alphanumeric LED Display |
| Communication Interface | RS232/RS422 (Optional) Transmission Method |
| Computer | PC Set with Weighing Software, 17” LED Monitor & Printer |
| Data Storage | Unlimited Data Storage |
| Power | 220V AC, 250W 20% |

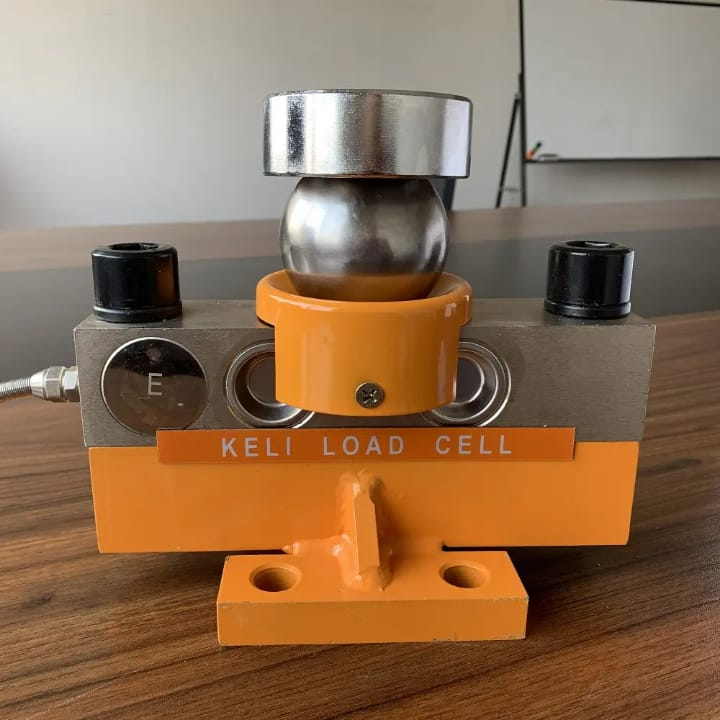

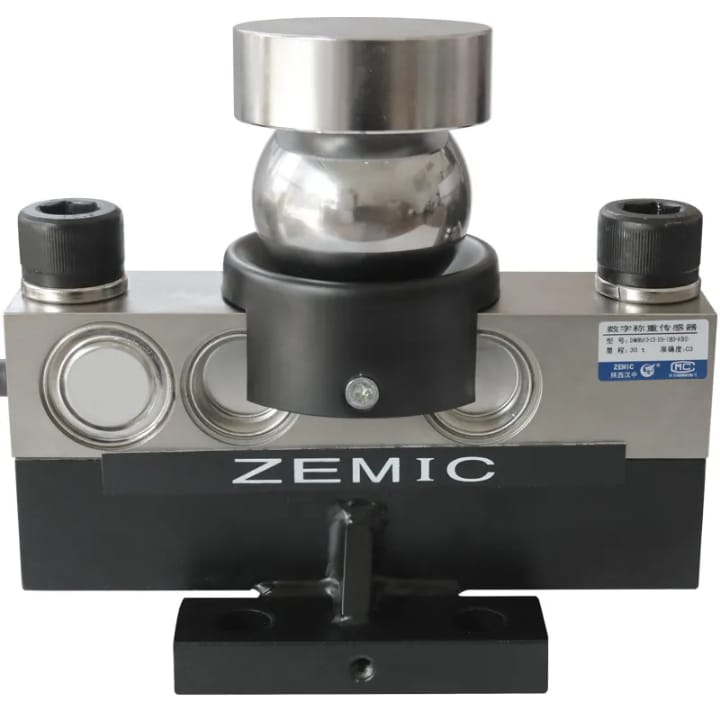

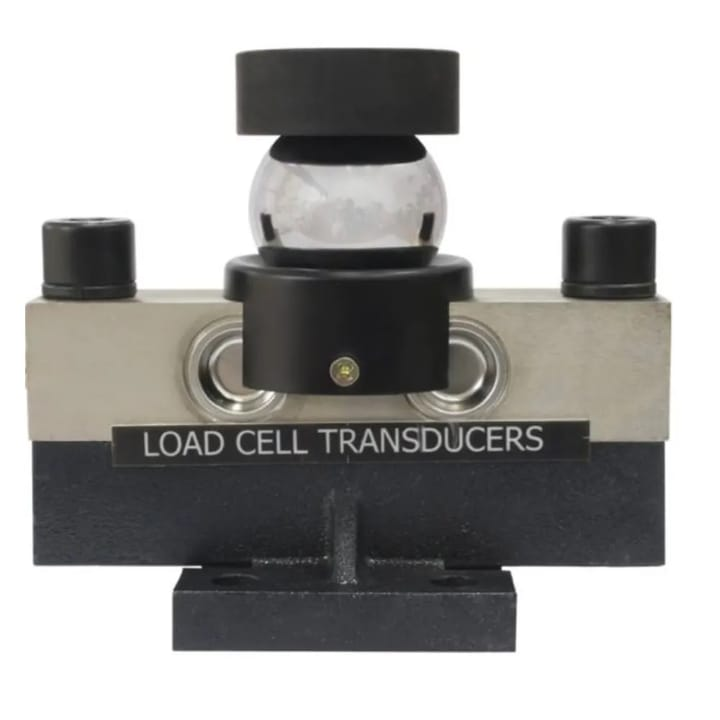

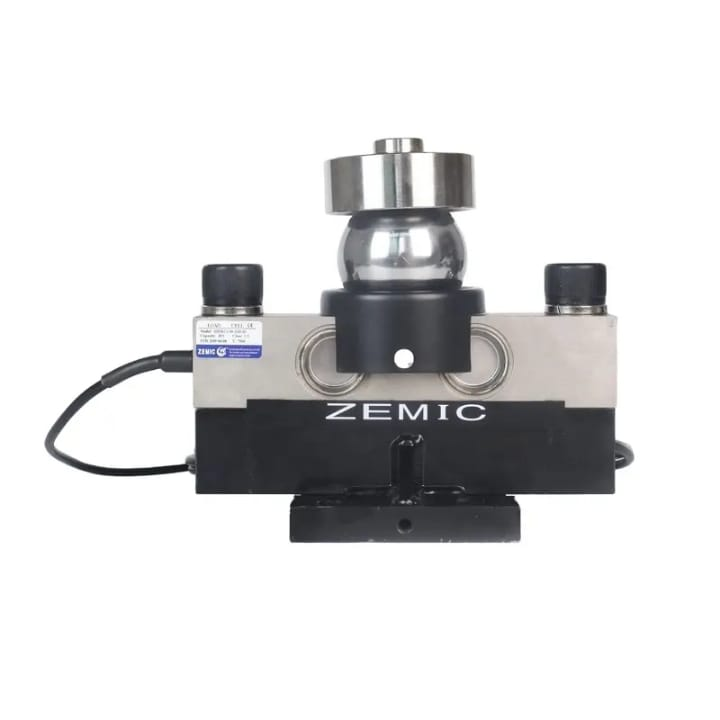

| Load Cell Information | |
| Model | Transducer/ZEMIC |
| Design | Ball |
| Type | Nickel Plated |
| Quantity | 4 (Four) |
| Capacity | 30 Ton (Each) |
| Country of Origin | Bangladesh |
| Guarantee | 1 (One) Year |
| Warranty | 2 (Two) Year |
40 Ton Specification
| Brand | |
| Design | Pit / Pitless Type Road Weigh Bridge |
| Model | Padma 002 |
| Capacity | 40 Ton |
| Accuracy/Division | 2/5 Kg |
| Lengths | 6 Meter |
| Width | 3 Meter |
| Platform Material | MS (Mild Steel) |
| Weighing Indicator | XK3190-DS1/DS3/DS8 |
| Large Display | 6 Digit Bright Red Alphanumeric LED Display |
| Communication Interface | RS232/RS422 (Optional) Transmission Method |
| Computer | PC Set with Weighing Software, 17” LED Monitor & Printer |
| Data Storage | Unlimited Data Storage |
| Power | 220V AC, 250W 20% |
| Load Cell Information | |
| Model | Transducer/ZEMIC |
| Design | Ball |
| Type | Nickel Plated |
| Quantity | 4 (Four) |
| Capacity | 30 Ton (Each) |
| Country of Origin | Bangladesh |
| Guarantee | 1 (One) Year |
| Warranty | 2 (Two) Year |
60 Ton Specification
| Brand | Padma |
| Design | Pit / Pitless Type Road Weigh Bridge |
| Model | Padma 003 |
| Capacity | 60 Ton |
| Accuracy/Division | 5 Kg |
| Lengths | 7.5 Meter |
| Width | 3 Meter |
| Platform Material | MS (Mild Steel) |
| Weighing Indicator | XK3190-DS1/DS3/DS8 |
| Large Display | 6 Digit Bright Red Alphanumeric LED Display |
| Communication Interface | RS232/RS422 (Optional) Transmission Method |
| Computer | PC Set with Weighing Software, 19” LED Monitor |
| Data Storage | Unlimited Data Storage |
| Power | 220V AC, 250W 20% |
| Load Cell Information | |
| Model | Transducer/ZEMIC |
| Design | Ball |
| Type | Nickel Plated |
| Quantity | 6 (Six) |
| Capacity | 40 Ton (Each) |
| Country of Origin | Bangladesh |
| Guarantee | 1 (One) Year |
| Warranty | 2 (Two) Year |

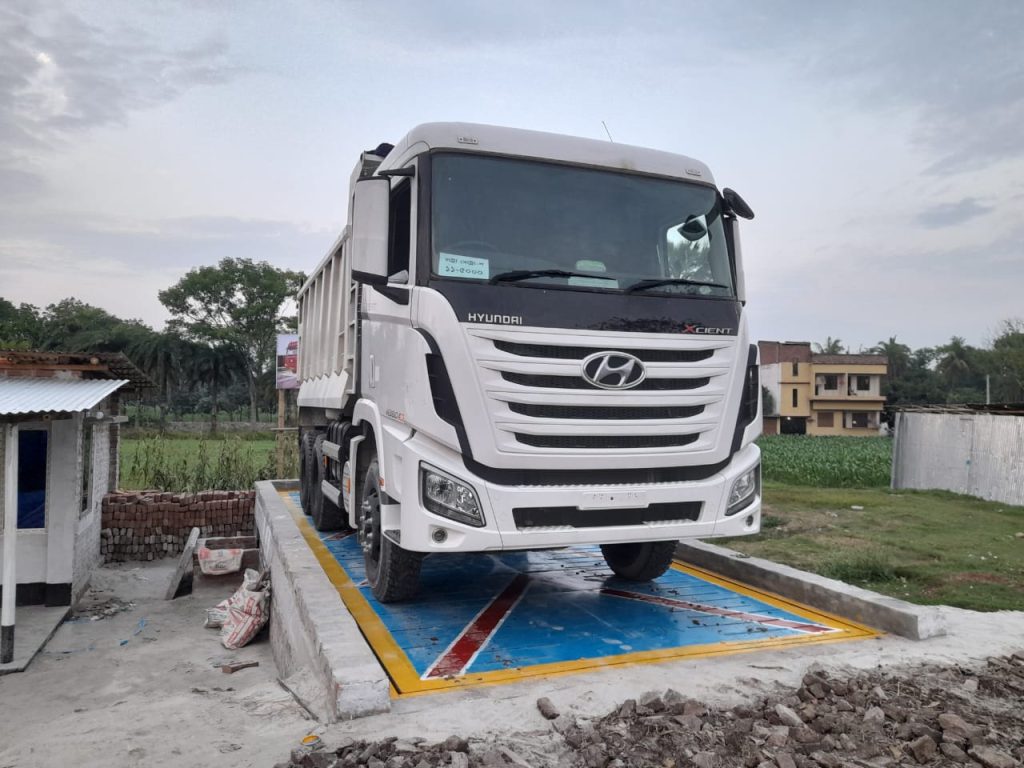

80 Ton Specification
| Brand | Padma |
| Design | Pit / Pitless Type Road Weigh Bridge |
| Model | Padma 004 |
| Capacity | 80 Ton |
| Accuracy/Division | 5/10 Kg |
| Lengths | 9 Meter |
| Width | 3 Meter |
| Platform Material | MS (Mild Steel) |
| Weighing Indicator | XK3190-DS1/DS3/DS8 |
| Large Display | 6 Digit Bright Red Alphanumeric LED Display |
| Communication Interface | RS232/RS422 (Optional) Transmission Method |
| Computer | PC Set with Weighing Software, 17” LED Monitor & Printer |
| Data Storage | Unlimited Data Storage |
| Power | 220V AC, 250W 20% |
| Load Cell Information | |
| Model | Transducer/ZEMIC |
| Design | Ball |
| Type | Nickel Plated |
| Quantity | 6 (Six) |
| Capacity | 40 Ton (Each) |
| Country of Origin | Bangladesh |
| Guarantee | 1 (One) Year |
| Warranty | 2 (Two) Year |
100 Ton Specification
| Brand | Padma |
| Design | Pit / Pitless Type Road Weigh Bridge |
| Model | Padma 005 |
| Capacity | 100 Ton |
| Accuracy/Division | 10/20 Kg |
| Lengths | 15 Meter |
| Width | 3 Meter |
| Platform Material | MS (Mild Steel) |
| Weighing Indicator | XK3190-DS1/DS3/DS8 |
| Large Display | 6 Digit Bright Red Alphanumeric LED Display |
| Communication Interface | RS232/RS422 (Optional) Transmission Method |
| Computer | PC Set with Weighing Software, 17” LED Monitor & Printer |
| Data Storage | Unlimited Data Storage |
| Power | 220V AC, 250W 20% |
| Load Cell Information | |
| Model | Transducer/ZEMIC |
| Design | Ball |
| Type | Nickel Plated |
| Quantity | 8 (Eight) |
| Capacity | 40 Ton (Each) |
| Country of Origin | Bangladesh |
| Guarantee | 1 (One) Year |
| Warranty | 2 (Two) Year |
