| Name | Details |
|---|---|

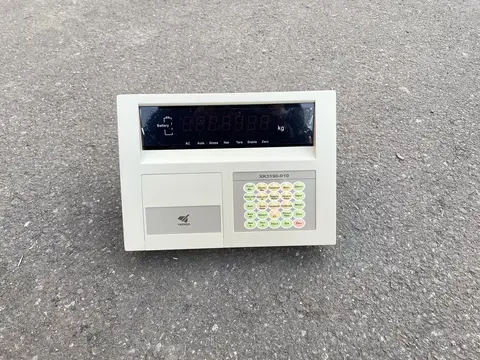

| Model | XK3190-D10 |
| Brand | YAOHUA |
| Origin | China (Jiangsu) |
| Accuracy | Class III, N=5000 |
| A/D Conversion Method | ∑-Δ |
| Input Signal Range | -15mV ~ 30mV |
| A/D Conversion Speed | 200 times/sec |
| Nonlinearity | ≤0.0015%FS |
| Load Cell Excitation | DC5V; I:120mA |
| Max. Connection Number of Load Cells | 8 at 350 ohm or 16 at 700 ohm |
| Load Cell Connection Mode | 6 wire, auto compensation for long distance |
| Max. Sensitivity | 0.5uV/d |
| Display | 7 bits LED, 7 status indications, 3 battery indications |
| Clock | Real clock, unaffected by power-off |
| Standard | Scoreboard interface (Standard) |
| Transmission Distance | Current loop ≤2000 meters |
| Serial Sending Signal by Current Loop Baud Rate | 600 |
| Communication Interface | RS232 C (Standard); RS422 (Optional) |
| Transmission Distance (RS232C) | ≤30 meters |
| Transmission Distance (RS422) | ≤1200 meters |
| Parallel Sending | Able to connect with wide-line printer (KX-P1121, KX-P1131, LQ300K) |
| Fuse | 0.5A |
| Print Interface | Standard |
| Power Supply | AC 187 |
We Are Manufacturur and supplier Of Digital Weigh Bridge, Digital Scale.
